Polycarbonate Solid Locking Roof System
Glass Like, 100% Water proof, Easy to Install, Pergola Roof
Product description
Excelite® Polycarbonate locking roof system is a perfect roof solution, ideal for commercial projects, home improvements like pergola roofing, veranda construction, and DIY.

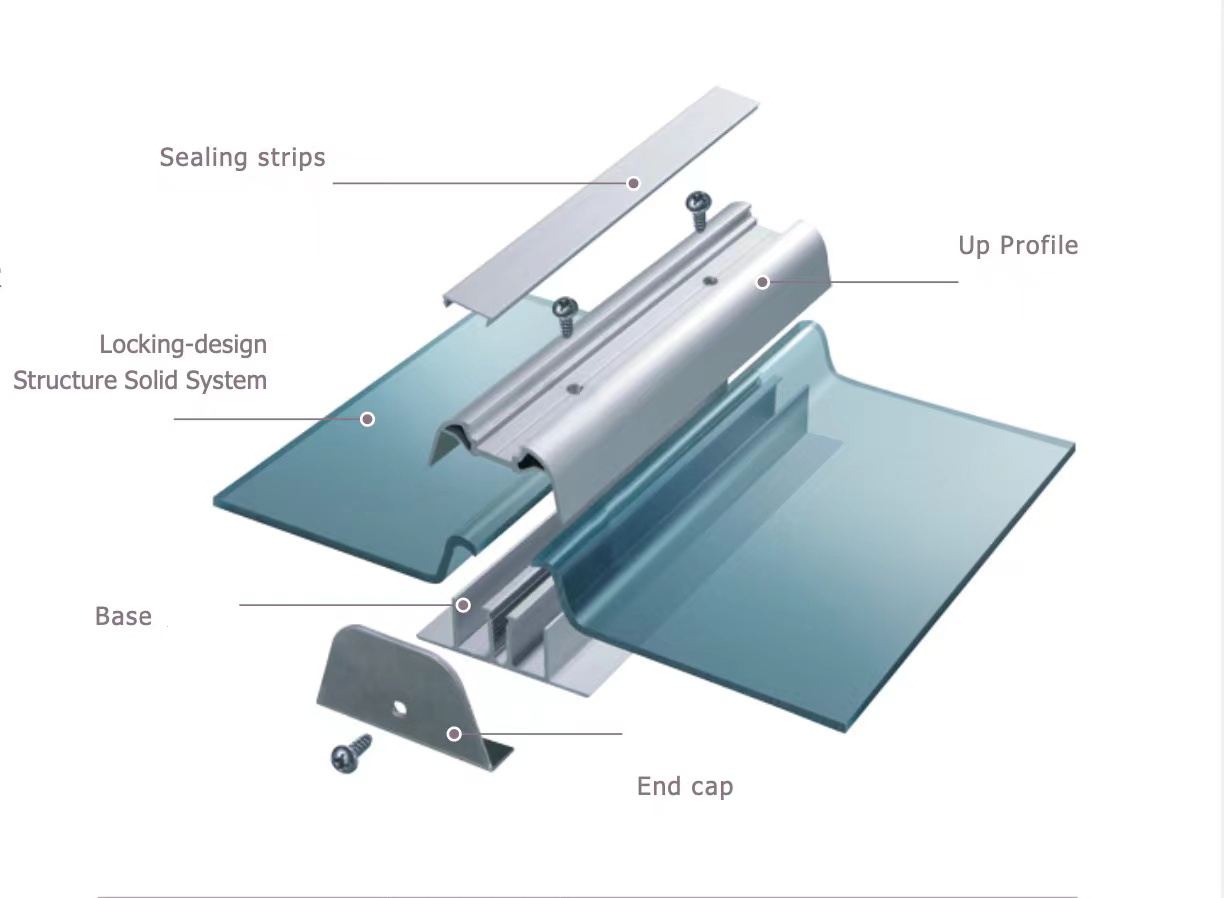

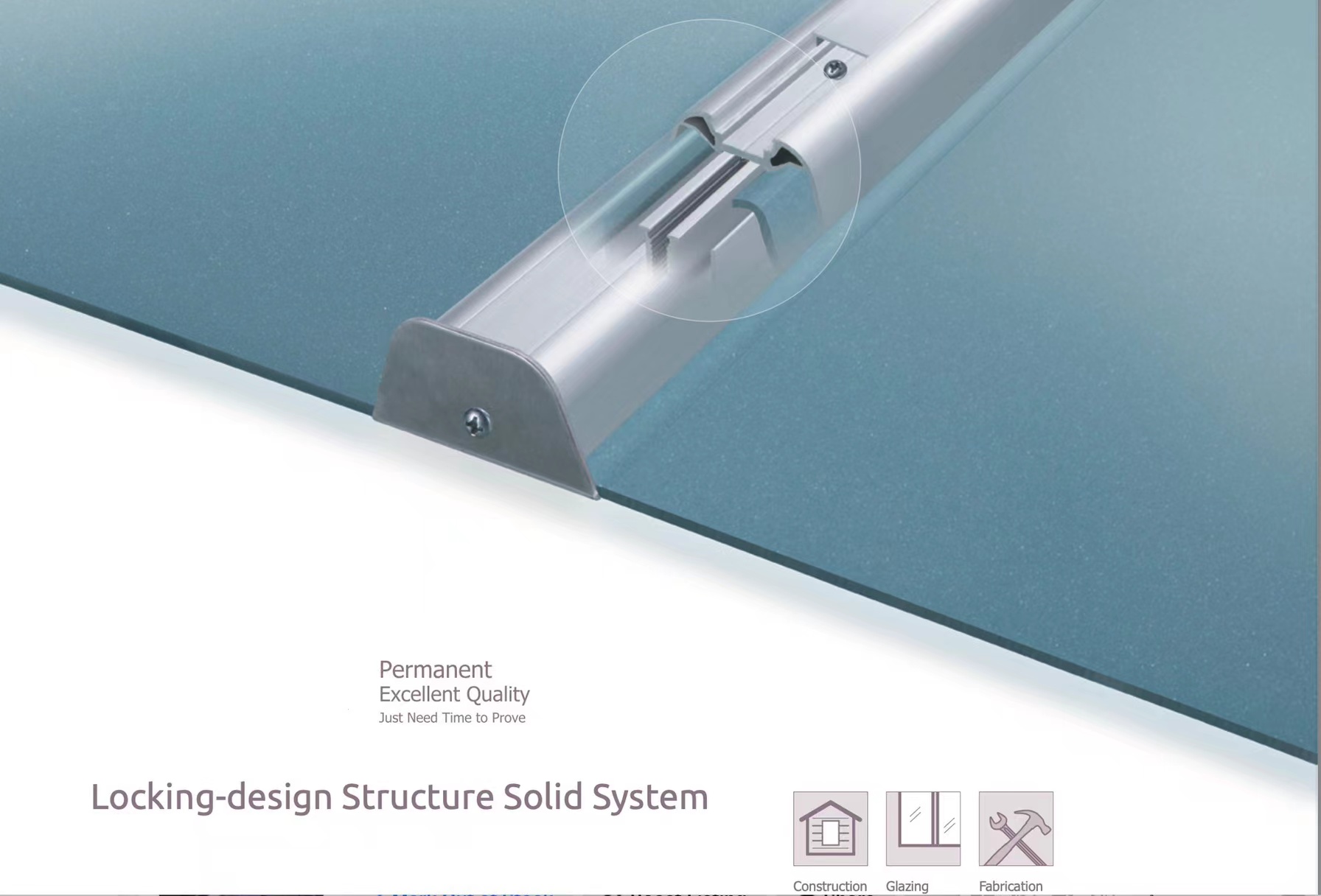

It features solid polycarbonate standing seam panels, aluminum joiners, and accessories. The system is 100% waterproof and engineered for wide spans and heavy-duty applications, including pergola roof, hail-resistant skylights, clear span roofs, and commercial curtain walls. Installation is screw-free, allowing the polycarbonate to expand freely within the aluminum track. It’s very easy to install. Life span over 15 years.
Main Benifits
- Glass Like Clear or Tinted Grey
- 100% WaterProof
- Hailproof
- Fast easy installation
- Gaskets or sealant free
- Blocks 99% harmful UV Ray (80 µm UV coating)
- Wind Uplift Resistan
- Wind pressure resistance.
- Working Temperature: -40°C-120 °C
- Free Thermal expansion
| Thickness 3mm/600 | Thickness 4mm/600 | Thickness 4mm/800 | |
|---|---|---|---|
| Width | Centre to Centre 600 | Centre to Centre 600 | Centre to Centre 800 |
| Thickness | 3mm | 4mm | 4mm |
| Weight | 3.79kg/sqm(2.20 kg/m) | 5.05kg/sqm(2.94 kg/m) | 4.98kg/sqm(3.90 kg/m) |
| Color | Clear and Tinted grey | Clear and Tinted grey | Clear and Tinted grey |
| Length | Customize(max 11.9m) | ||
Excellent Thermal Insulation
- U-VALUE – Measures how well a material conducts heat. For polycarbonate sheet, it shows the heat transfer, Its units are the W/(m2°C). A lower U-value means better insulation.
- R-VALUE – Measures a material’s resistance to heat flow. A higher R-value indicates better insulation. It’s the inverse of the U-value.
4mm clear float glass has a U value of 5.9 m2K/W, 4mm polycarbonate 5.29 m2K/W, means same thickness polycarbonate sheet has better heat insulation. Polycarbonate Roofing sheet is an incredibly energy efficient and a fantastic insulator.
UV Protection
- Excelite polycarbonate solid locking roofing system all treated with one layer 50μm UV coating, which can block 99% harmful Ultraviolet include UVA and UVB.
Fire Grade
- Generally, building materials are divided into four levels: A, B1, B2, and B3. Polycarbonate roofing is used as a Class B1 fireproof material. Non-flammable, and self-extinguishing away from the fire, which is higher than Acrylic sheet.
Polycarbonate Roofing Sheets Application
Pergola Roofing

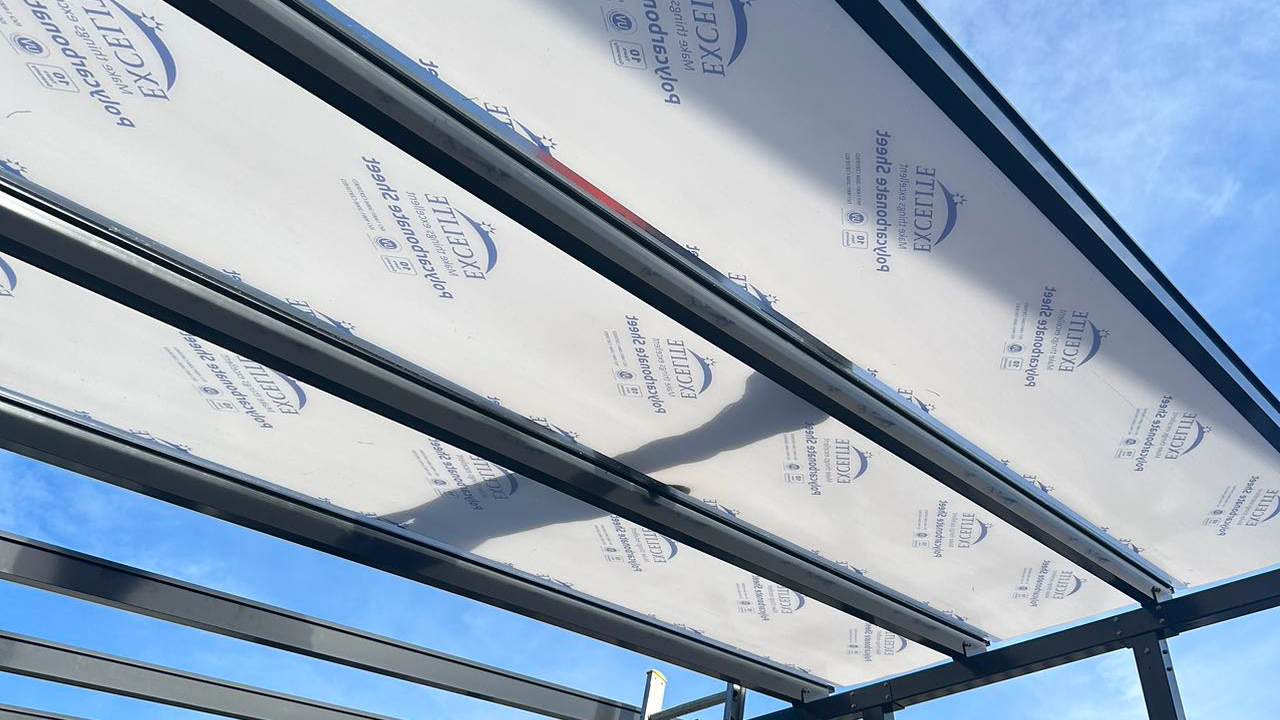

Cover your pergola, Patio or veranda with glass like Roofing. Outdoor pergola with roof, W600/800mm, Rafters only.
Walkway Cover
Cover your Walkway canopy with Glass like clear polycarbonate roof, suitable for wooden frame, metall frame.
Patio Roof
Patio cover, Patio furniture covers, Patio roof, Patio canopy, clear patio cover, The best roofing material for patio builders.
Roof windows, Flat roof windows, skylight window, roof skylight, pitched roof windows, gable roof skylight
Glazing system can bend to suit, Curved Roofing Cladding, Curved Roof Pergola, Curved Patios.
Sunroom
Glass patio enclosures, Four season sunroom, small glass house, glass garden house, backyard glass house, greenhouse.
FAQ
Most frequent questions and answers
Multiwall Polycarbonate Roofing Sheets: Multiwall polycarbonate sheets are consist of two or multi-layers of polycarbonate separated by vertical ribs, creating a fluted or hollow structure. It offers excellent thermal insulation due to the air spaces between the layers. It is light weight compared to solid flat sheets. It can provide good light diffusion, reducing glare from direct sunlight. Excelite are available in various thicknesses and colors, with options for enhanced UV protection.
In addition to standard polycarbonate roofing sheets, Excelite also offer system-integrated roofing solutions. Polycarbonate roofing sheets has great leak-free performance, heat insulation, and high impact resistance, these sheets provide a durable and versatile roofing solutions. They also have various applications, including residential, commercial, and industrial roofing projects. Explore the different types of polycarbonate sheets available, such as polycarbonate hollow roofing sheet, polycarbonate solid sheet, polycarbonate twin-wall sheet…, to find the best fit for your project.
Polycarbonate flat roofing panels: These clear polycarbonate flat roofing panels serve as an excellent substitute for situations demanding high transparency, complete visual clarity, strong impact resistance, and efficient UV protection. Excelite roofing panels are fitting for spaces requiring a spacious and well-lit environment, like greenhouses, atriums, and skylights, blending practicality with aesthetic appeal.
Tinted polycarbonate roofing panels: While these retain the same impact durability and UV shielding as transparent panels, coloured polycarbonate panels also provide thermal insulation and anti-glare properties. Tinted polycarbonate roofing panels enhance comfort and energy efficiency while preserving structural integrity – they are ideal for instances necessitating shade or privacy.
Our standard color for polycarbonate roofing is clear, providing maximum light transmission. However, we understand that different projects may require different aesthetics. Therefore, we also offer light grey and dark gray options at a 5% upcharge. These options can provide a different look while still allowing substantial light transmission.
Installation of our polycarbonate roofing is designed to be as straightforward as possible. Each roofing order comes with a comprehensive installation guide that provides step-by-step instructions. However, we understand that some customers may prefer professional installation. For these cases, we offer professional installation services. Our team of experts can handle the installation process for you, ensuring the roofing is installed correctly and efficiently.
