Custom Hyperbaric Chamber Door Window Glass

Order custom hyperbaric chamber door window “glass” in optical-grade polycarbonate—thick, flat, CNC-fabricated, and coating-ready

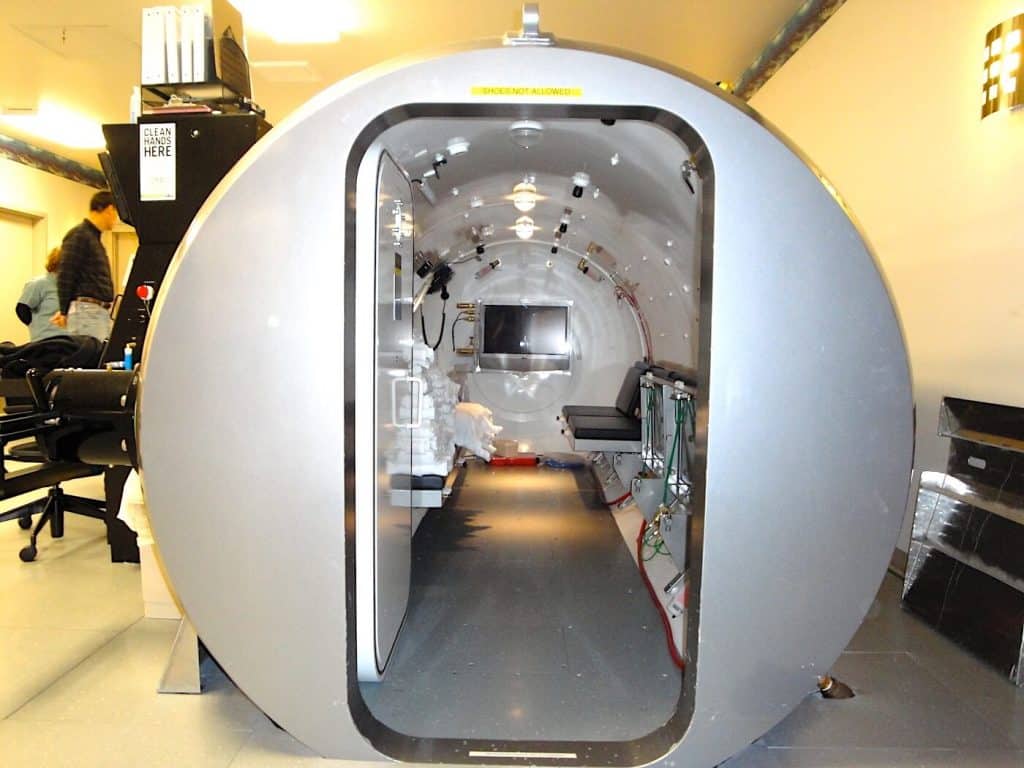

Custom Hyperbaric Chamber Door Window Glass for Hyperbaric Chambers

Excelite Plastics supplies custom optical-grade polycarbonate viewports for hyperbaric chamber door windows and observation windows. Suitable for monoplace chambers, multiplace chambers, and hard-shell doors, each window is fabricated to customer drawings with required cutouts and hardware interfaces. The product emphasizes dimensional control and optical clarity to support reliable inspection and assembly.

Main Features

Material: optical-grade polycarbonate
Precision dimensions and flatness control: Flatness control and optical clarity to prevent observation distortion
Pressure-aware fabrication records: Processing and inspection documented for operating conditions around 1.3 ATA, 1.4 ATA, and 3.0 ATA to ensure edge condition, fit, and panel consistency meet pressure-specific requirements.
Standards alignment and documentation: Manufacturing and test records aligned with applicable ISO, ASTM, and UL requirements to support engineering and quality documentation.
Typical use: hyperbaric chamber glass / hyperbaric chamber door glass / chamber door viewing window
Light transmission: up to 91%
Benefits: cleaner sightlines, reduced visual fatigue, better monitoring and user confidence
Applicable applications: PVHO windows and other pressure-observation environments
Product offering: custom door viewports and machined-to-fit panels
Service model: one-stop polycarbonate solution with quality manufacturing

Manufacturing Capability You Can Rely On

One-source model: supplies polycarbonate sheet + in-house custom fabrication, eliminating split-vendor disconnects
Benefits for chamber windows: improved accountability for thickness, edge quality, and lead-time control
Thick-sheet capability: can produce sheets >25 mm and offers cast options for even thicker panels — supports high-pressure viewing port and specialty OEM needs
Target customers: distributors, traders, OEM buyers needing export-ready production and repeatability

Manufacturing Capability You Can Rely On

One-source model: supplies polycarbonate sheet + in-house custom fabrication, eliminating split-vendor disconnects
Benefits for chamber windows: improved accountability for thickness, edge quality, and lead-time control
Thick-sheet capability: can produce sheets >25 mm and offers cast options for even thicker panels — supports high-pressure viewing port and specialty OEM needs
Target customers: distributors, traders, OEM buyers needing export-ready production and repeatability

Industry Expertise

Decades of industry expertise, delivering high-quality parts with precision and reliability.

Custom

Customized solutions, accommodate design, material preferences, and production requirements with ease.

Collaborative Approach

Collaborative approach, working closely with our clients to understand their specific requirements and goals.

Custom Manufacturing Capabilities

CNC Routing and Cutting Machining Services

Precision hole drilling, and cut-outs, tolerance control ensures tight fits with mechanical parts

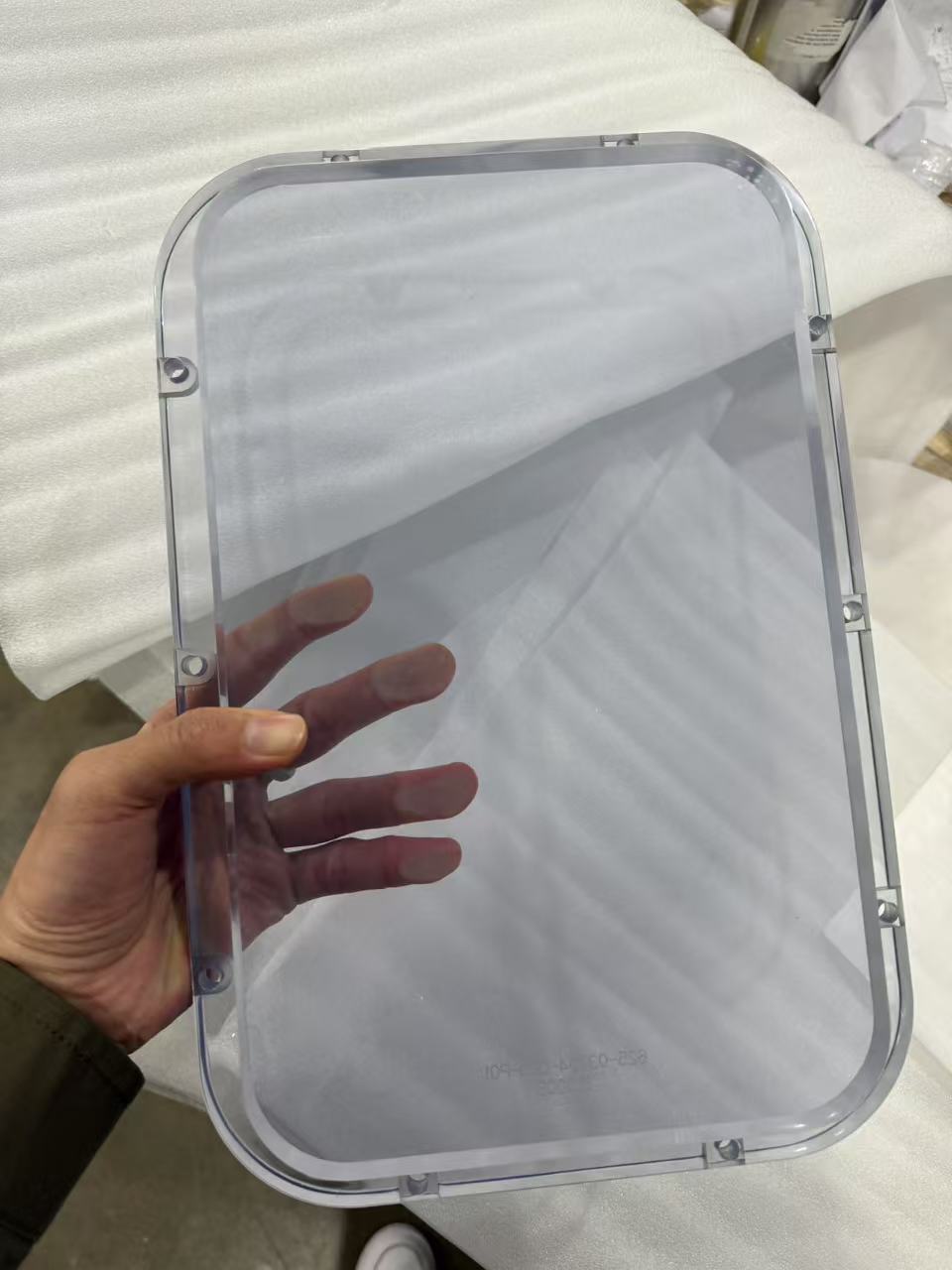

Polishing

Help the polycarbonate enclosure a smooth polished finish after the fabrication.

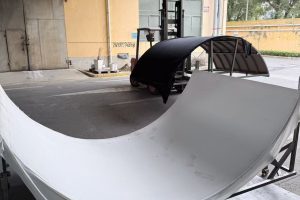

Bending Enclosures

Enables L-shaped or U-shaped bending panel sections, No need for complex joints

Common Questions About Custom Hyperbaric Chamber Door Window Glass

Most frequent questions and answers

Can Excelite Plastics make a replacement hyperbaric chamber door window from a sketch?

Yes, a dimensioned sketch can support quoting if it includes thickness, edge finish, cutout details, and mounting method. A CAD file is faster for confirming tolerances and machining features.

Do you supply glass or polycarbonate for hyperbaric chamber door windows?

Excelite Plastics primarily supplies custom polycarbonate window panels. If your project specifies “glass,” the team will review whether polycarbonate is acceptable for the intended design and use.

What coatings are available for a chamber viewing window?

Available options include anti-fog, anti-static, abrasion-resistant, and anti-scratch surfaces. The right coating depends on cleaning frequency, humidity, dust exposure, and handling risk.

Can you produce thick panels for high-pressure chamber viewing port applications?

Yes, the production line can manufacture polycarbonate sheets exceeding 25 mm, and cast polycarbonate is available from 30 mm to 100+ mm. That supports thicker specialty builds and replacement requirements.

What information speeds up quoting?

Send CAD, target thickness, finish, quantity, and delivery location. It also helps to state whether the part is a replacement window, prototype, or production order.

A chamber window purchase becomes easier when the supplier can control material, machining, coatings, and shipment in one workflow. Excelite Plastics is positioned for that role, with custom fabrication, thick-sheet capability, specialty coatings, and quoting built for distributors, traders, and OEM buyers.
