Tinted Polycarbonate Sheets

Good light transmission with shade | Ship to Worldwide | UV Resistant

  • Resists various chemicals and other substances
  • Flexible, formable, machinable; hot or cold bending
  • Provides good thermal insulation, considerably better than glass or aluminum
  • Excellent ink adhesion and print quality
send your inquiry now

Description

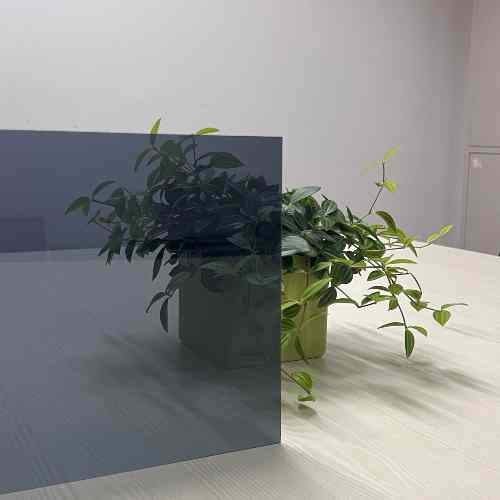

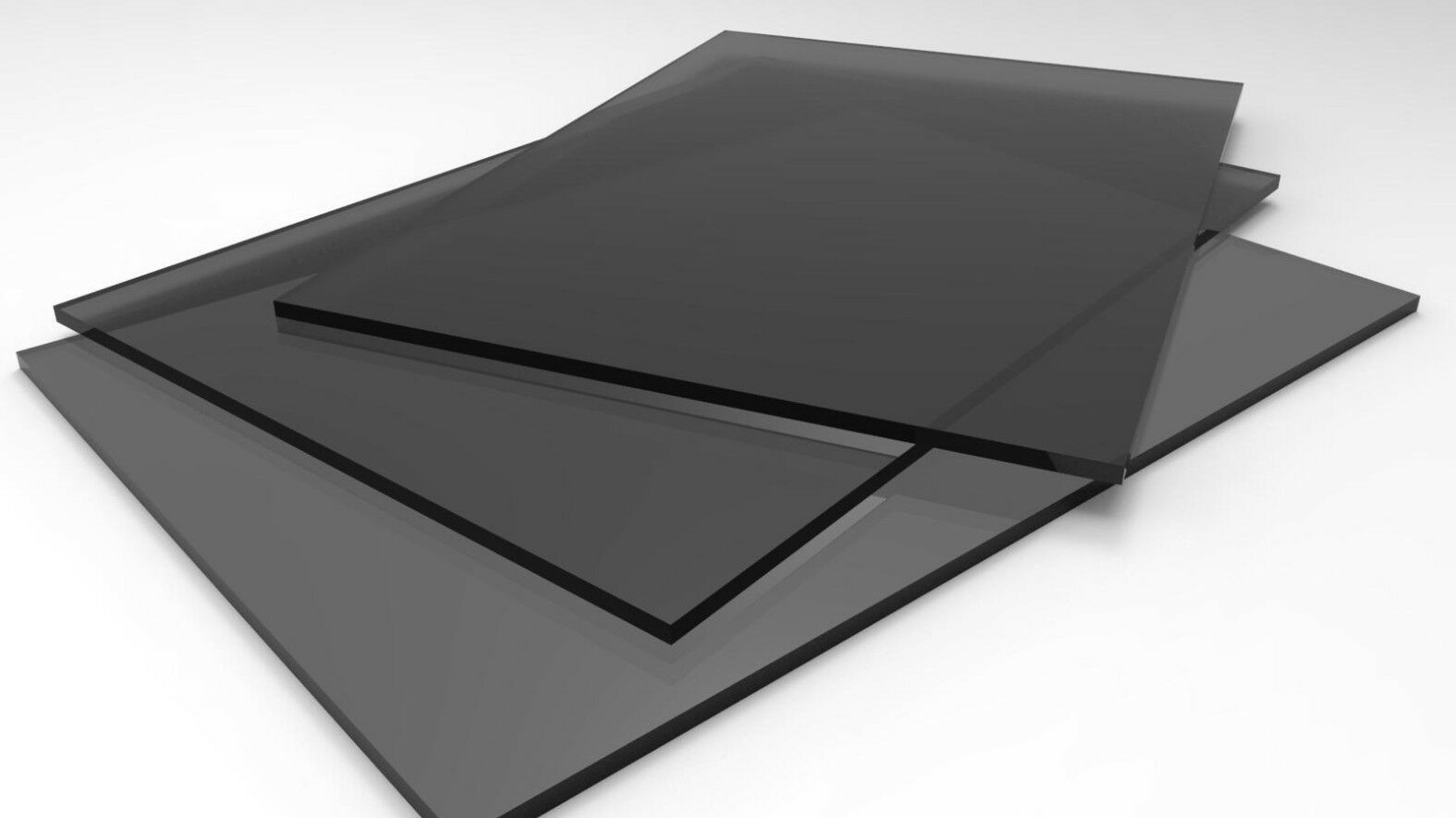

Grey Tint Polycarbonate sheet (also known as Makrolon®,  Pal-Sun or Lexan™) is see through material with tinted shade. The primary applications for tinted polycarbonate sheets include polycarbonate roofing sheets, impact-resistant boat windows, polycarbonate windscreens, and and outdoor POS displays.

The transparent gray smoked polycarbonate can do barriers, partitions, machine guards, signage. It also widely used for school and factory glazing.

In this guide, we’ll provide you with an overview of the tinted polycarbonate sheet. We will give you useful tips on how to choice a right tinted sheet.

Tinted Grey PC sheets combating heat and shielding against UV light damage. With a selection of tinted plastic sheet products available in various colours, you can tailor the level of protection needed against solar energy. This shielding not only decreases UV radiation but also minimises infrared radiation, making it an ideal choice for schools or the place you don’t need too much light.

Additionally, tinted plastic sheets offer a more aesthetically pleasing option compared to simply applying film to the window.

Product Features & Benefits

  •  Light Control and glare reduction: Tinted sheets effectively regulate light transmission, minimize glare, providing options for different levels of shading.
  • UV Protection: With UV protective coatings. It is crucial for applications like greenhouses or outdoor structures.
  • Privacy: Darker-tinted polycarbonate sheets offer increased privacy, making them suitable for partitions or areas where a higher level of discretion is required
  • Versatility: Tinted polycarbonate sheets often incorporate various coatings such as anti-scratch, anti-fog, and anti-glare, enhancing their functionality and making them adaptable for diverse applications
  • Durability, impact resistance, and weather resistance
  • Energy Efficiency: reducing the need for excessive artificial lighting or air conditioning in certain environments
  • Customization: allows for customization to meet specific design or functional requirements

Product Specifications

  • Available thickness range: 1mm-12mm sheets
  • Sheet dimensions: 1220x2440mm, 1830x2440mm, 2050x3050mm or customize
  • Weight: Density 1.2kg/sqm

Types of Tinted Polycarbonate Sheets

Excelite tinted polycarbonate sheets provide good light transmission with shade, flexibility, and strength for various applications. As a factory manufacturer, Excelite ensures the production of high-quality and durable products.

  • Light Tinted Polycarbonate sheet

Light tinted polycarbonate sheet features a subtle tint or color, providing a delicate reduction in light transmission while maintaining clarity. Applications where a slight shading effect is needed without compromising visibility or natural light. Their versatility makes them suitable for various environments, from architecture to automotive, offering a balanced solution between shading and transparency. The unique feature lies in providing a mild shading effect while ensuring clear visibility and a natural visual experience.

  • Dark Tinted Polycarbonate sheet

Dark tinted polycarbonate type sheet with a darker tint offer higher shade and glare reduction compared to the light tinted polycarbonate sheet. Ideal for situations requiring enhanced privacy and greater control over light, such as in outdoor structures or partitions.

  • UV Coating Tinted Polycarbonate sheet

UV coating sheets are specially designed for the applications where UV protection is crucial, for example, greenhouse, skylights, outdoor covers, roofing.

  • Bronze Tinted Polycarbonate sheet

Bronze-tinted color provides a warm and visually appealing color, elevating the aesthetic charm of buildings and structures. They are commonly applied in architectural glazing and façade applications.

  • Grey Tinted Polycarbonate panels

Grey tinted polycarbonate sheets offer a neutral color choice with excellent light diffusion properties. These polycarbonate sheets are well-suited for situations where minimizing light glare is essential, without significantly changing the color of the transmitted light.

  • Blue or Green Tinted Polycarbonate sheeting

Blue or green tint polycarbonate sheet is employed to establish a distinctive visual ambiance or theme in various applications, including interior décor, artistic installations, or decorative panels.

Technical Data Sheets

Properties Test Conditions Test Method Unit Typical Values
Density SO 1183-1 g/cm3 1.2
Water absorption saturation Water at 23°C ISO 62 % 0.3
Water absorption equilibrium 23°C, 50% relative humidity ISO 62 % 0.12
Refractive index Procedure A ISO 489 - 1.587
Tensile modulus 1mm/min ISO 527-1, -2 Mpa 2300
Yield stress 50mm/min ISO 527-1, -2 Mpa 60
Yield strain 50mm/min ISO 527-1, -2 % 6
Nominal strain at break 50mm/min ISO 527-1, -2 % 50
Flexural modulus 2mm/min ISO 178:2019 Mpa 2410
Flexural strength 2mm/min ISO 178:2019 Mpa 113
IZOD impact strength (Notched) 23°C, 50% relative humidity, 3.2mm ASTM D256-10 Method A J/m 921
VICAT Softening Temperature 50N, 50K/h ISO 306: 2013 °C 145
Thermal conductivity 23°C ISO 8302 W/mK 0.2
Electrical strength 23±2°C, 50±5 % RH, 48h IEC 60243 -1: 2013 k/V/mm 14.29
Volume resistivity IEC 60231 -3: 2016 Ω*m 1.14E+15 Ω*m
Surface resistivity IEC 60231 -3: 2016 Ω/sq 3.18E+16 Ω/sq

Related Blog Articles

Application

railway window

Railway Window Glazing

Tinted railway windows protective barriers, machine guards, impact resistance is essential for safety and security.

Forestry windshield

Forestry windshield

Formed to match the same specifications of OEM models, all the way down to the machining holes.

Super abrasion resistant coated on both sides, reduce noise and limit sun exposure while also maximizing visibility.

Curved Roof

Tinted Polycarbonate Roofing Canopy

The solar grey tint provides 50% light transmission. It can be cold bent, fabricated or formed and offers good thermal properties. Ideal for both commercial and demanding DIY interior or exterior applications.

FAQ

The thickness of the tinted polycarbonate increases, its translucency also increases.

  • At 5mm thickness, the light transmission is approximately 48%.
  • At 6mm thickness, the light transmission decreases to about 40%.

Polycarbonate sheet material is known for its high impact resistance and durability.  To drill holes in polycarbonate, use an ordinary iron or HSS drill bit. Position the drill perpendicular to the sheet and run it at medium speed, applying light pressure. A slightly used but sharp drill bit is best to avoid “biting” into the  material.

And don’t drill too close to the edge.

The lifespan of Excelite® polycarbonate sheet typically ranges from 10 to 15 years, depending on factors such as material quality, UV protection, environmental exposure, and maintenance. PC Sheets with UV-resistant coatings generally last longer.

No, polycarbonate and Perspex (acrylic sheet) are not the same. While both are transparent plastic materials, polycarbonate is more impact-resistant, tougher, and flexible, making it nearly unbreakable. Perspex, also known as acrylic, is more rigid and has a higher clarity but is more prone to cracking and shattering under impact. Polycarbonate is better suited for applications requiring durability and impact resistance, whereas Acrylic is often chosen for its optical clarity and scratch resistance.

Our polycarbonate gray plastic sheets can be machined using all known machining methods.
