Excelite

Corrugated Polycarbonate Roof Panel

Customise  | Ship to Worldwide | Lightweight Roofing Solution

Excelite® Polycarbonate Corrugated Roof Panels are known for lightweight construction, excellent impact resistance, and high light transmission, and provide a reliable alternative to traditional roofing materials while supporting a wide range of various applications such as greenhouses, carports, patio covers, deck covers, sunrooms, pool enclosures, and more.

Description

Excelite Corrugated Polycarbonate Roof Panel is a roofing material manufactured from polycarbonate plastic, a high-performance thermoplastic known for strength and optical clarity. The corrugated (ridged) profile, including designs like Square Wave and Greca Polycarbonate, adds rigidity and improves load-bearing performance.

Excelite roofing panels are available as clear polycarbonate, translucent, or opaque options and are commonly used in roofing projects for residential patios, commercial greenhouses, and agricultural structures. As a polycarbonate roofing panel, it combines durability with aesthetic appeal.

Corrugated Polycarbonate Roofing Panels-Features & Performance

  • High impact resistance and excellent impact resistance
  • Exceptional impact strength, tensile strength, and tensile modulus
  • Excellent light transmission (up to 80–90%)
  • Available as clear panel, clear sheet, or clear roofing sheet for high light transmission
  • Features UV protection to block harmful rays and reduce yellowing
  • Strong weather resistance
  • Performs well across wide temperature ranges while accounting for thermal expansion
  • Lightweight design reduces structural load
  • High resistance compared to many plastic sheets and roofing materials

Product Specifications

  • Available color: Clear, Tinted Grey, Silver Grey or customize
  • Thickness: 1.8mm, 3.0mm, 3.6mm, 4.2mm or customize
  • Width | Coverage810mm | 775mm

Quality Standards

  • Compliance with international quality and safety standards (e.g., ISO, ASTM, UL, AS, CE)
  • In-house quality control measures
  • Third-party inspection and certification (if applicable)
  • Warranty or guarantee offered on the products

Plastic Roof Panels Installation Best Practices

  • Follow manufacturer installation instructions
  • Use fasteners with EPDM washers
  • Allow room for thermal expansion
  • Install with the UV-protected side facing upward
  • Use proper overlap techniques
  • Install closure strips or foam closure to prevent water intrusion
  • No special tools required, making installation DIY-friendly

Technical Data Sheets

Properties Test Conditions Test Method Unit Typical Values
Density SO 1183-1 g/cm3 1.2
Water absorption saturation Water at 23°C ISO 62 % 0.3
Water absorption equilibrium 23°C, 50% relative humidity ISO 62 % 0.12
Refractive index Procedure A ISO 489 - 1.587
Tensile modulus 1mm/min ISO 527-1, -2 Mpa 2300
Yield stress 50mm/min ISO 527-1, -2 Mpa 60
Yield strain 50mm/min ISO 527-1, -2 % 6
Nominal strain at break 50mm/min ISO 527-1, -2 % 50
Flexural modulus 2mm/min ISO 178:2019 Mpa 2410
Flexural strength 2mm/min ISO 178:2019 Mpa 113
IZOD impact strength (Notched) 23°C, 50% relative humidity, 3.2mm ASTM D256-10 Method A J/m 921
VICAT Softening Temperature 50N, 50K/h ISO 306: 2013 °C 145
Thermal conductivity 23°C ISO 8302 W/mK 0.2
Electrical strength 23±2°C, 50±5 % RH, 48h IEC 60243 -1: 2013 k/V/mm 14.29
Volume resistivity IEC 60231 -3: 2016 Ω*m 1.14E+15 Ω*m
Surface resistivity IEC 60231 -3: 2016 Ω/sq 3.18E+16 Ω/sq

Application

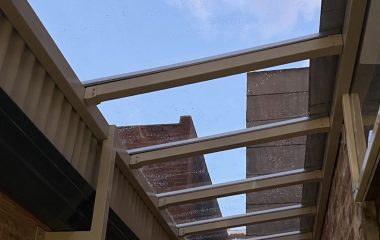

Clear Walkway Roof Cover

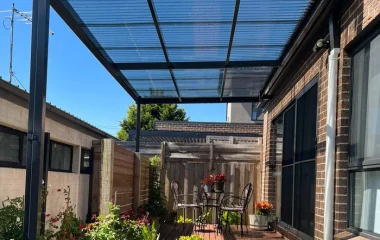

Patio covers and Pergolas

Polycarbonate patio covers and pergolas provide lightweight, durable protection with excellent light transmission, weather resistance, and long-lasting impact strength outdoors.

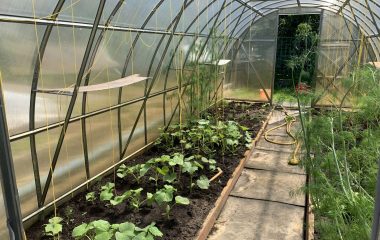

view of the interior of the greenhouse covered with polycarbonate sheets.

Greenhouses and Commercial greenhouses

Polycarbonate panels in greenhouses and commercial greenhouses deliver high light transmission, excellent insulation, impact resistance, and reliable protection for year-round plant growth.

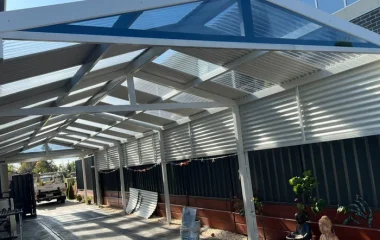

corrugated-polycarbonate-sheet

Sunrooms and Skylights

Polycarbonate panels for sunrooms and skylights provide high light transmission, impact resistance, UV protection, and lightweight durability for comfortable, bright interiors.

Garden Sheds and Walkways

A high-performance roofing material offering excellent durability, clarity, and weather resistance.

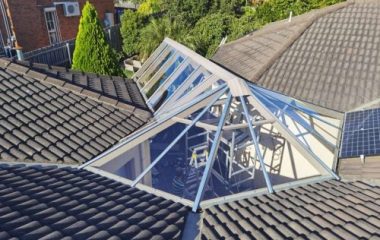

roofing sheets

Residential and Commercial Roofing Projects

Work with architects to design roofing solutions that meet building codes and business requirements.
Clear Polycarbonate sheet for roofing

Clear polycarbonate sheets are an ideal material for pergola and veranda covers, offering a traditional glass-like appearance

FAQ

Polycarbonate sheets may yellow over time, which is influenced by the material quality and the presence of protective coatings. Excelite’s clear polycarbonate sheets have UV coatings on both sides and come with a 10-year warranty.

Yes, clear polycarbonate sheets are more prone to scratching compared to some other materials, such as glass or acrylic. But we offer polycarbonate sheets with scratch-resistant coatings that can help improve durability and reduce the likelihood of scratches.

Polycarbonate sheet material is known for its high impact resistance and durability.  To drill holes in polycarbonate, use an ordinary iron or HSS drill bit. Position the drill perpendicular to the sheet and run it at medium speed, applying light pressure. A slightly used but sharp drill bit is best to avoid “biting” into the  material.

And don’t drill too close to the edge.

The lifespan of Excelite® roofing  panels typically ranges from 10 to 15 years, depending on factors such as material quality, UV protection, environmental exposure, and maintenance. PC Sheets with UV-resistant coatings generally last longer.

Learn more about polycarbonate panels lifespan →https://exceliteplas.com/polycarbonate-panels-lifespan/



No, polycarbonate and Perspex (acrylic sheet) are not the same. While both are transparent plastic materials, polycarbonate is more impact-resistant, tougher, and flexible, making it nearly unbreakable. Perspex, also known as acrylic, is more rigid and has a higher clarity but is more prone to cracking and shattering under impact. Polycarbonate is better suited for applications requiring durability and impact resistance, whereas Acrylic is often chosen for its optical clarity and scratch resistance.

With proper installation and maintenance, polycarbonate corrugated sheets typically last 10 to 20+ years, depending on thickness, UV protection, and environmental conditions.

Polycarbonate sheets are recyclable and have a long service life, which reduces material replacement frequency. Their ability to reduce lighting energy consumption also contributes to sustainability.

Corrugated plastic sheets are available in clear, white, bronze, solar gray, and opaque colors. Color selection affects light transmission and heat control.

Clean periodically using mild soap and water with a soft cloth or sponge. Avoid abrasive cleaners or brushes that could damage the UV coating.

Thickness selection depends on span, load, and application. Roofing projects exposed to high wind or snow loads typically require thicker panels or closer support spacing.




Corrugated sheets are ideal for lightweight roofing and covers, while multiwall polycarbonate sheets offer improved insulation and structural performance for enclosed spaces like sunrooms and greenhouses.
