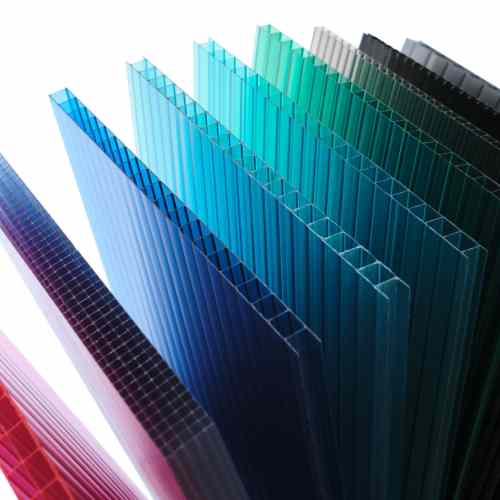

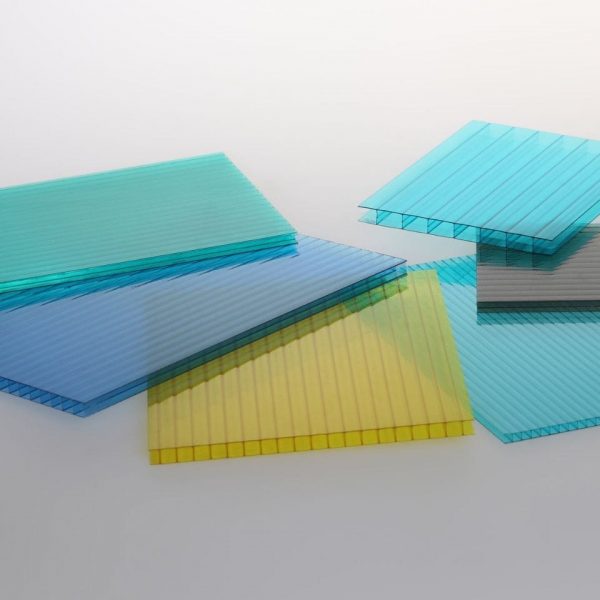

Twin Wall Polycarbonate Sheets

Customise  | Ship to Worldwide | Exceptional Transparency

Explore our range of high-quality twin-wall polycarbonate sheets, offering excellent thermal insulation, light transmission, and durability for various applications. Find your perfect fit today.

send your inquiry now

Description

The polycarbonate roof sheets, also named fluted Polycarbonate Sheet, allow the natural light transmission in while also providing effective heat insulation, making them an ideal choice for a range of projects.

Twin-wall polycarbonate sheets, commonly referred to as plastic roof panels, consist of double-layered polycarbonate panels that provide a lightweight, highly impact-resistant, and cost-effective substitute for solid polycarbonate panels. They are widely used in various applications, such as greenhouse panels, pergola roofing, pergola enclosures, pool enclosures, barriers, partitions and more. Offering both natural light transmission and efficient heat insulation, the polycarbonate roof sheets are a versatile and optimal selection for various projects.

Excelite polycarbonate fluted twin wall sheets are not only practical and durable but also affordable, making them an excellent option for numerous applications. We maintain a stocked inventory offering a variety of colors and sizes. As your dependable supplier, we will assist you choose from various sizes and thicknesses to match your insulation and project requirements.

Product Features & Benefits

  • Light weight: Twin wall polycarbonate roofing sheet is much lighter than polycarbonate solid sheet. For example, 10mm twin wall polycarbonate sheet unit weight is 1.7kg/sqm, whereas a 10mm polycarbonate solid sheet weights 12kg/sqm, and a 10mm glass sheet has a weight of 24.93kg/sqm.
  • High impact resistance: With its two-layer twin wall structure offering enhanced rigidity, the twin-wall polycarbonate sheets provide protection against hail, wind-blown debris, and other potential sources of damage.
  • Thermal Insulation: The air channels within the hollow structure of the sheets provide thermal insulation properties, helping to regulate indoor temperatures and reduce energy costs for heating and cooling.
  • UV protection: The polycarbonate hollow sheets extruded UV layer on the sheet surface. This helps prevent fading of interior furnishings and maintains the long term use.
  • Design Flexibility: Polycarbonate hollow sheets are available in variety of thickness, colors, and installation. They can easily be curved, bent, shaped to meet specific project requirements, even do it at home.

Product Specifications

  • Size: 1050x2440mm; 2100x3000mm; 1220x2440mm
  • Thickness: 6mm, 8mm, 10mm
  • Color: clear, grey, blue, brown, opal

Technical Data Sheets

Properties Test Conditions Test Method Unit Typical Values
Density SO 1183-1 g/cm3 1.2
Water absorption saturation Water at 23°C ISO 62 % 0.3
Water absorption equilibrium 23°C, 50% relative humidity ISO 62 % 0.12
Refractive index Procedure A ISO 489 - 1.587
Tensile modulus 1mm/min ISO 527-1, -2 Mpa 2300
Yield stress 50mm/min ISO 527-1, -2 Mpa 60
Yield strain 50mm/min ISO 527-1, -2 % 6
Nominal strain at break 50mm/min ISO 527-1, -2 % 50
Flexural modulus 2mm/min ISO 178:2019 Mpa 2410
Flexural strength 2mm/min ISO 178:2019 Mpa 113
IZOD impact strength (Notched) 23°C, 50% relative humidity, 3.2mm ASTM D256-10 Method A J/m 921
VICAT Softening Temperature 50N, 50K/h ISO 306: 2013 °C 145
Thermal conductivity 23°C ISO 8302 W/mK 0.2
Electrical strength 23±2°C, 50±5 % RH, 48h IEC 60243 -1: 2013 k/V/mm 14.29
Volume resistivity IEC 60231 -3: 2016 Ω*m 1.14E+15 Ω*m
Surface resistivity IEC 60231 -3: 2016 Ω/sq 3.18E+16 Ω/sq
