Excelite

Solar Control Panel

 All kinds of thickness | Heat Resistant Sheet| Ship to Worldwide | UV Resistant

At Excelite, solar control polycarbonate sheet polycarbonate sheet offers exceptional impact resistance, UV protection, and virtually unbreakable properties while blocking infrared heat.

Description

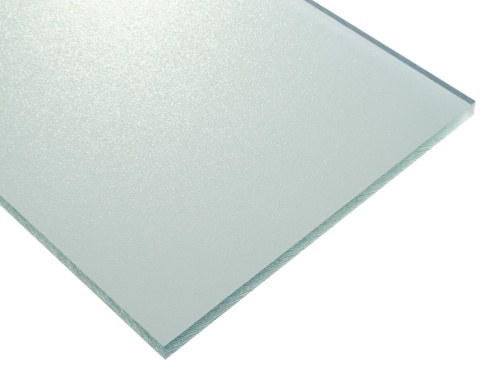

Heat reflective polycarbonate sheet, also names solar control IR sheet is an innovative solution offering superior solar control and thermal insulation. Ideal for residential skylights, commercial buildings, greenhouses, gazebos, automotive glazing, industrial applications, and more. Enjoy natural light while reducing heat buildup. Choose Excelite for a comfortable and energy-efficient environment in various applications.

Excelite solar control polycarbonate roofing represents a revolutionary solution that allows light to enter while minimising heat accumulation. This innovative product mainly use for transparent coverings and windows with effective solar control. Compared with the normal polycarbonate solid sheet, the heat insulation is better than 26% or more.

Outstanding Thermal Insulation Performance

  • Reflects infrared rays (IR), reducing indoor temperature increases
  • Reduces energy consumption by minimizing air conditioning requirements
  • Retains high light transmittance for natural daylight utilization
  • Perfect for sunny environments where effective cooling is essential

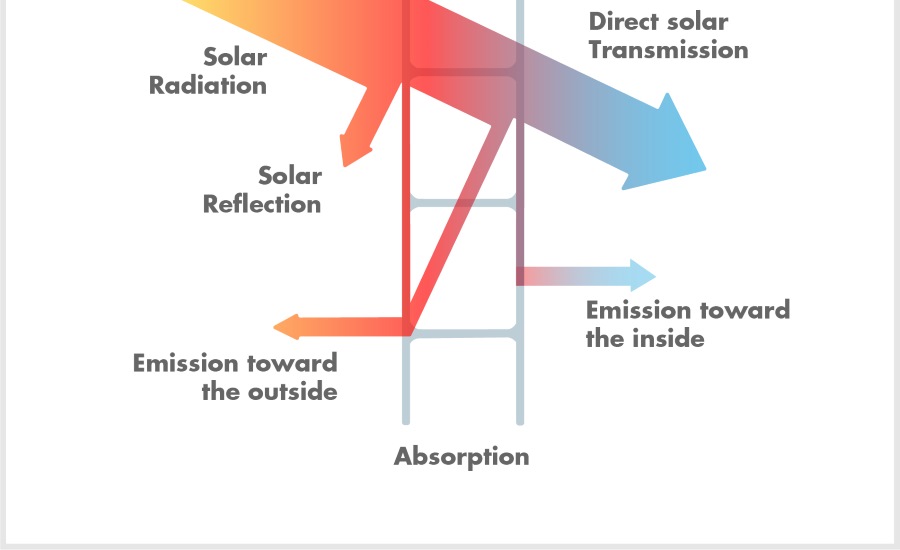

The solar spectrum

Product Features & Benefits

  • Solar Control: The IR polycarbonate sheets incorporate infrared coating to reduce the greenhouse effect in enclosed spaces, providing thermal insulation by reflecting infrared rays. Reduce temperatures by max. 15°C or 59°F
  • Selective Wavelength Control: These sheets selectively control the sun’s rays, allowing visible light to pass (390-700nm) while significantly blocking sunlight and infrared wavelengths (780-1400 nm).
  • Clear but cool: By preventing the accumulation of heat inside structures, the IR-coated polycarbonate contributes to maintaining comfortable temperatures without sacrificing natural illumination.
  • Weathering Resistant – Lasts 15 years or more due to excellent UV protection and lower surface temperatures.
  • Wide Range of Applications: Suitable for skylights, tunnels, greenhouses, gazebos, and more, the modular IR panels offer design flexibility in terms of thicknesses, dimensions, and applications.

Product Specifications

  • Available thickness range: 1mm-25mm thickness
  • Sheet dimensions: 1220x2440mm, 1830x2440mm, 2050x3050mm or customize
  • Weight: Density 1.20kg/sqm

Quality Standards

  • Energy Efficiency: The potential result of using Excelite IR polycarbonate is a reduction in energy spending for both cooling and lighting, making it a cost-effective and sustainable solution.
  • Comfortable Interiors: The infrared coating ensures more comfort inside buildings and vehicles by preventing excessive heating caused by sunlight.
  • Enhanced Performance: Compared to traditional polycarbonate sheets, IR polycarbonate holds a significant advantage in blocking solar energy, offering better performance in construction.
  • Customizable Options: The availability of different colors, including Solar blue, and Solar Green, allows users to choose IR-blocking polycarbonate sheets that align with their specific needs, balancing visible light transmission and heat reduction.

Excelite Solar control products include two series of solid polycarbonate sheet and Multiwall polycarbonate sheet roofing system.

All Excelite solar control polycarbonate sheets are accompanied by a documented 10-year warranty. This warranty safeguards against any decline in characteristics related to light and solar transmission, yellowing, and breakage resulting from hail damage.

This material combines excellent light transmission, outstanding impact resistance, and thermal protection, making it ideal for architectural, industrial, and transport applications where heat control and visibility are both required.

FAQ

To minimize heat absorption into the facades, our initial suggestion is to use tinted color polycarbonate sheets. Furthermore, we strongly suggest our IR polycarbonate panels. These panels are equipped with an infrared coating specifically designed to diminish heat transmission.

The Shading Coefficient (SC) is a measure of the ability of a window or shading device to block heat from the sun. It is the ratio of the solar heat gain through a IR polycarbonate sheet to the solar heat gain through a standard clear polycarbonate panel under the same conditions. A lower shading coefficient indicates better heat-blocking properties.

FOR EXAMPLE,

Standard polycarbonate clear glass 3 mm with 88% light transmission. SC is 0.9.

IR polycarbonate glass 3mm is 75% and SC is 0.55.

The lower the value, the more convenient it is to stay under the material on warm, sunny days. In commercial architectural projects, the SC should usually be between 0.3 to 0.5.
