Excelite

Polycarbonate Rods

Customize  | Ship to Worldwide | Custom machining

send your inquiry now

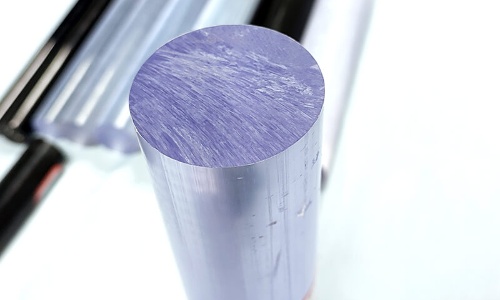

Polycarbonate Rod is a transparent thermoplastic that exhibits high impact resistance, good machinability, and excellent electrical properties.

Polycarbonate Rod withstands higher temperatures compared than ABS and also thermoformable. It can be heated and molded into various shapes without losing their strength.

Its low moisture absorption rate and good chemical resistance make it an extremely versatile engineering material suitable for industrial applications.
Polycarbonate Rod has excellent dimensional stability and maintains good strength and stiffness over a wide temperature range.

Machine-grade Polycarbonate is stress-relieved, making it perfect for producing close-tolerance machined parts.

These make it ideal for various applications, including protective equipment, electrical components, and custom machining projects.

Previous
Next

Product Features

  • UV Resistant
  • Low Water Absorption
  • High Impact Strength
  • Flame Retardant
  • Good Electrical Insulation
  • Dimensional Stability: Maintains shape and strength across a wide range of temperatures.
  • Continuous use temperature of 250ºF with very high toughness to -20ºF properties
  • Easy to machine to close tolerances
send your inquiry now

Product Specifications

  • Available dimensions range:

    Polycarbonate rods Ø10 mm- Ø300mm

Technical Data Sheet

Properties Test Conditions Test Method Unit Typical Values
Density SO 1183-1 g/cm3 1.2
Water absorption saturation Water at 23°C ISO 62 % 0.3
Water absorption equilibrium 23°C, 50% relative humidity ISO 62 % 0.12
Refractive index Procedure A ISO 489 - 1.587
Tensile modulus 1mm/min ISO 527-1, -2 Mpa 2300
Yield stress 50mm/min ISO 527-1, -2 Mpa 60
Yield strain 50mm/min ISO 527-1, -2 % 6
Nominal strain at break 50mm/min ISO 527-1, -2 % 50
Flexural modulus 2mm/min ISO 178:2019 Mpa 2410
Flexural strength 2mm/min ISO 178:2019 Mpa 113
IZOD impact strength (Notched) 23°C, 50% relative humidity, 3.2mm ASTM D256-10 Method A J/m 921
VICAT Softening Temperature 50N, 50K/h ISO 306: 2013 °C 145
Thermal conductivity 23°C ISO 8302 W/mK 0.2
Electrical strength 23±2°C, 50±5 % RH, 48h IEC 60243 -1: 2013 k/V/mm 14.29
Volume resistivity IEC 60231 -3: 2016 Ω*m 1.14E+15 Ω*m
Surface resistivity IEC 60231 -3: 2016 Ω/sq 3.18E+16 Ω/sq

Application

polycarbonate-component

Medical Equipment Components

Kidney dialysis equipment, Blood oxygenators are using polycarbonate rods for components due to its strength, durability and resistance to impact and chemicals.

turning polycarbonate

Electrical insulators and connectors

Polycarbonate components are used in the electrical systems of vehicles, including connectors for lighting, power distribution, and safety systems, providing insulation and protection against environmental factors.
think polycarbonate screws
Aerospace

The aerospace industry uses polycarbonate rod components in aircraft systems, where lightweight and durable materials are essential for performance and safety.

FAQ

Polycarbonate has good chemical resistance to many substances, but it is advisable to avoid exposure to certain chemicals, such as strong acids and bases, to maintain the material’s integrity and appearance.

Yes, Polycarbonate rods can be easily machined using standard tools. They can be cut, drilled, and formed without cracking or breaking, making them ideal for custom fabrication and precision engineering.

Excelite Polycarbonate Rods are commonly used in applications that require high strength, excellent electrical properties, and good machinability, such as in the production of precision machined parts, electrical insulators, and structural components.

Yes, Polycarbonate rods are highly durable and can withstand a wide temperature range from -40°F to 280°F, making them suitable for both indoor and outdoor environments, including areas with extreme heat or cold.



Yes, Polycarbonate rods can be easily cut using standard tools. We also offer custom cutting services.
